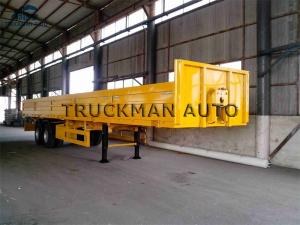

40FT Container Type Side Wall Semi Trailer With JOST Brand Tractor Pin
1. Container Type Side Wall Trailer.
-. The side wall trailer could transport the bulk cargo and transport container.
-. With loading 40-70 tons, heavy loading chassis design.
-. Tire model have 12.00R20, 12R22.5, 315/80R22.5 etc. Use chinese good brand tire.
-. Axles quantity from 3 to 6 axles, for the loading limit request.
-. All spare parts meet the BV, SGS, quality certificate request and supply the warranty.
| Overall Dimension | 13000mm*2495mm*2920mm |
| Box Body Dimension | 12780mm*2300mm*600mm |
| King Pin Setting | 1460mm | Rear Overhang | 1930mm, 2130mm |
| Box Body | Floor steel sheet 2.5mm, side wall steel sheet 1.2mm |
| Running Gear |
| Suspension | Tri-axle mechanical suspension with 11-pcs leaf spring |
| Tires | 11.00-20, 11.00R20,12.00-20,12.00R20, 12units |
| Axles | FUWA, BPW or STEYR axle, load capacity 13T |
| Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake |
| Under Frame |
| Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. |
| Cross Beam | Mild Alloy Q235 |
| King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled |
| Landing Gear | Single side operation or double side operation, Static capacity 30Ton |
| Electrical & Paint |
| Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
| Wiring | 24V, 6 lines |
| Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket |
| Paint | Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request |
-2. FAQ
-. Terms of paymemt.
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Whats your delivery time.
20-25 working days after received the deposit.
-. What is your terms of shipment?
The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
